1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

Brand Name : Merrytek

Model Number : MS01

Certification : CE ,EMC

Place of Origin : China

MOQ : Stop production, not available.

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 20,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Operating Voltage : 1~10Vdc

Product Name : Daylight sensor

Dimming range : 1％~100％

IP Rating : IP20

Application : Office ,workshop,warehouse

Operation temperature : -0℃~45℃

Max. current sink : 50mA(Maximum rating)

Contact Now

MS01 daylight harvesting sensor (photocell), could adjust the light output acoording to nature light, so that make the total light keep at certain level.

Description

1, Provides an energy saving without sacrificing visual comfort.

2, With ambient light dependent control.

3, Directly connected to 1-10V interface.

4, Simple setting of the target light level by mean of potentiometer.

5, MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell

to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of

light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output

according to the signal from the daylight sensor.

6, Dim down/up luminaires accroding to ambient brightness level.

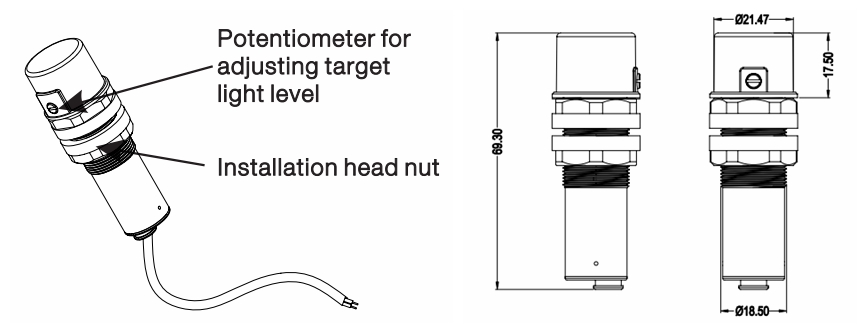

Mechanical Specification

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

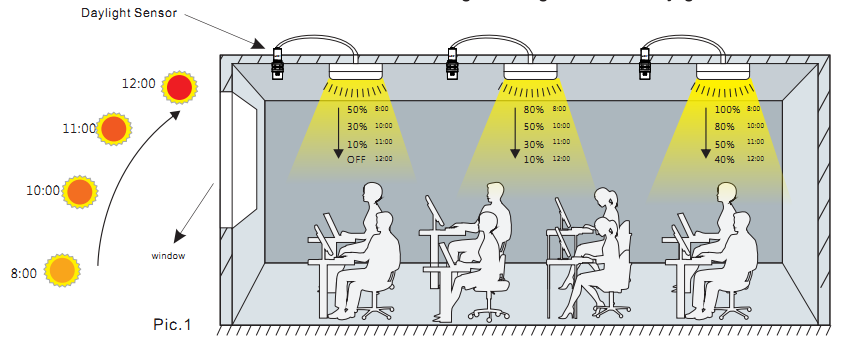

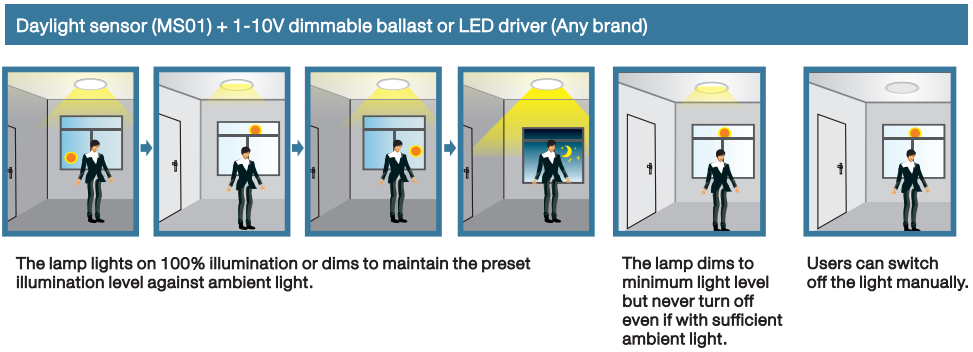

Daylight harvesting Function

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

Specifications:

Operating voltage

1~10Vdc

Max. current sink

50mA(Maximum rating)

Dimming range

1％~100％

Cable length

80Cm

Color coding of cable

Red+, Black-

Detection angle

90°

IP rating

IP20

Operation Temperature

-0℃~45℃

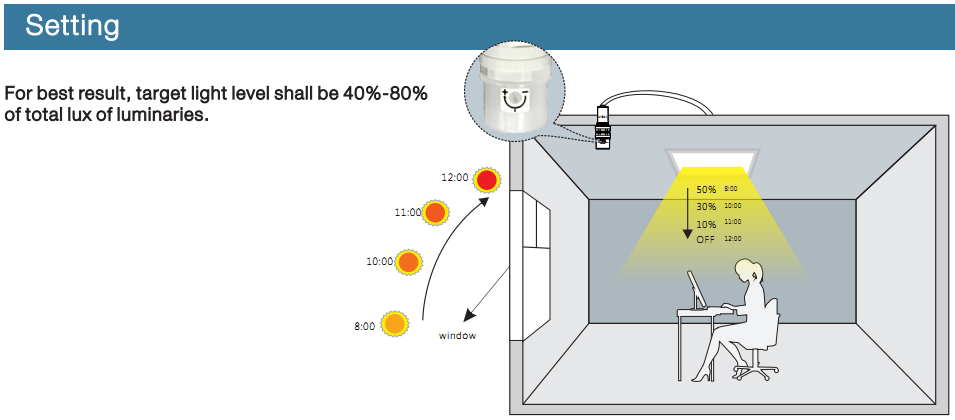

Settings

1-10V Photocell Daylight Harvesting Sensor With Maintained Lumination For Lighting Control

Applications

Office, workshop, warehouse, etc
