High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Name: High Bay Microwave Light Sensor Detachable Remote Control For Warehouse
Brand: Merrytek
Price: 1 USD

Brand Name : Merrytek

Model Number : MC623V D RC

Certification : CE & RED

Place of Origin : China

MOQ : Stop production, not available.

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10,000pcs per Month

Delivery Time : 1, Sample ans small order: Within 5 working days 2, Bulk order: within 3-4 weeks

Packaging Details : Packed in bubble bags firstly, amd then reinforced with carton for outer packing

Product Name : Microwave motion sensor

Operating Voltage : 120/277VAC, 50/60Hz

Detection Area : 8m(ceiling mounting: 9m)

Rated load : 400W (Inductive), 800W (Resistive) @120V AC, 800W (Inductive), 1000W (Resistive) @277V AC

HF system : 5.8GHz ±75MHz, ISM wave band

Approval : CE, RED, cULus

Operation temperature : -35℃…+70℃

Function : ON/OFF function, 2-step dimming function, 3-step dimming function

IP Rating : IP65

Cover color : Black or white

Transmitting power : 1mW Max.

Contact Now

Detachable High Bay Sensor for Warehouse , Remote control, Patented Microwave Antenna

Description

Designing for warehouse

IP65,support external installation

Patented Microwave Antenna, mounting height is 15m Max, suitable to install in most warehouses.

5.8GHz high frequency microwave(C-Band license-free operation)

MC623V D RC is an innovative and active motion detector with HF system 5.8GHz. Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function. Work with remote controller MH10, easy to adjust sensor parameters.

Function:

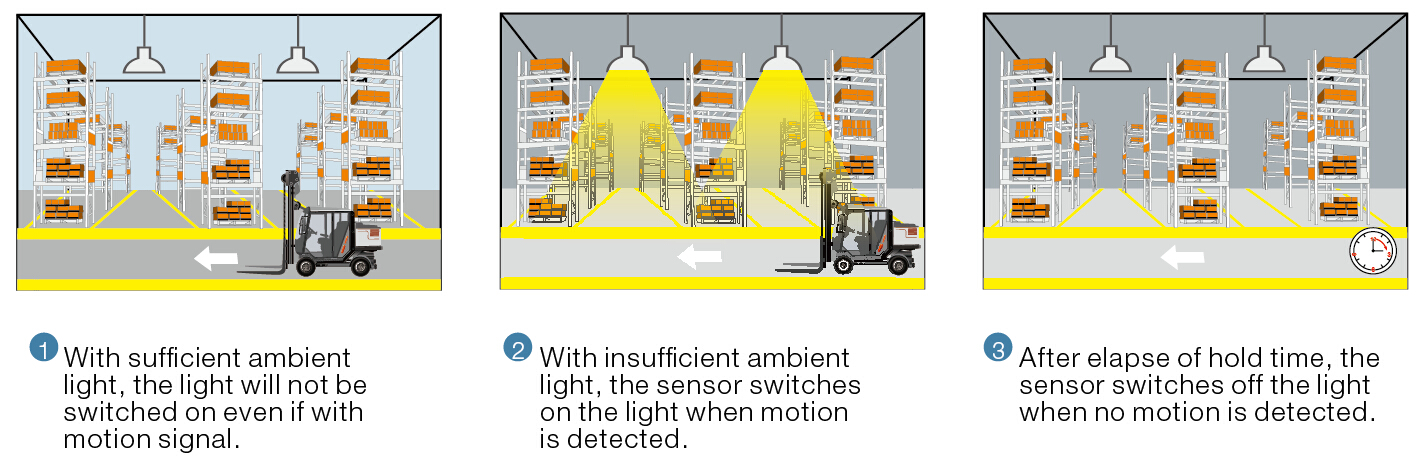

ON-OFF function

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

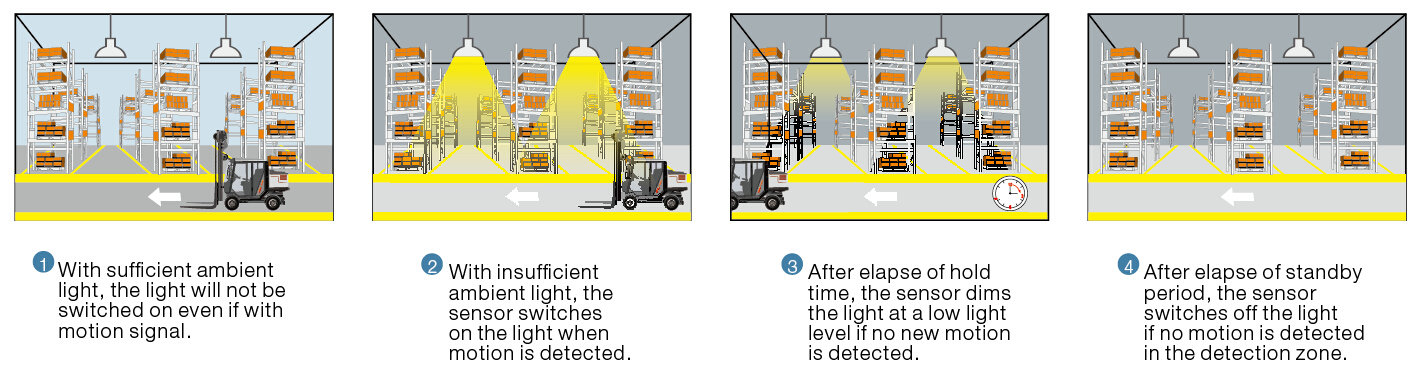

2-step dimming function

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

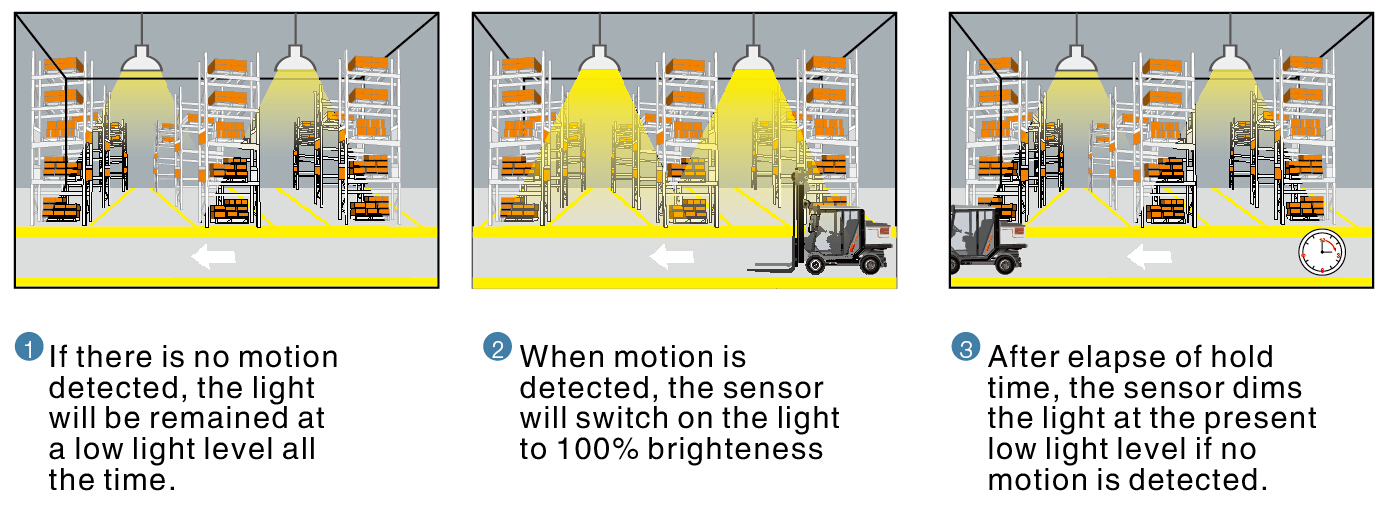

3-step dimming function

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Detection Patter:

Ceiling mounting

Ceiling mounted height: 3m

Sensitivity: 100%/75%/50%/25%

Ceiling mounted height: 9m

Sensitivity: 100%/75%/50%/25%

Ceiling mounted height: 15m(*)

Sensitivity: 100%/75%/50%

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Slow moving (Speed 0.3m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Slow moving (Speed 0.3m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Slow moving (Speed 0.3m/s)

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.

Wall mounting

Horizon mounted height: 2m

Sensitivity: 100%/75%/50%/25%

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Normal moving (Speed:1m/s)

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Slow moving (Speed 0.3m/s)

Specifications:

Operating voltage	120/277VAC, 50/60Hz
Rated load	400W (Inductive), 800W (Resistive) @120V AC 800W (Inductive), 1000W (Resistive) @277V AC
HF system	5.8GHz±75MHz, ISM wave band
Stand-by Power	<1W
Transmitting power	1mW Max.
Detection zone Max.(D x H)	15m x 8m
Motion detection	0.3~3m/s
Detection angle	150°(wall installation) 360°(ceiling installation)
IP rating	IP65
Operation temperature	-35℃…+70℃
Hold time	5S/30S/1min/3min/5min/10min/20min/30min
Detection Area	100%/75%/50%/25%
Daylight sensor	5lux/15lux/30lux/50lux/100lux/150lux/Disable
Stand-by DIM Level	10%/20%/30%/50%
Life time	50,000 hours
Guaranty	5 years

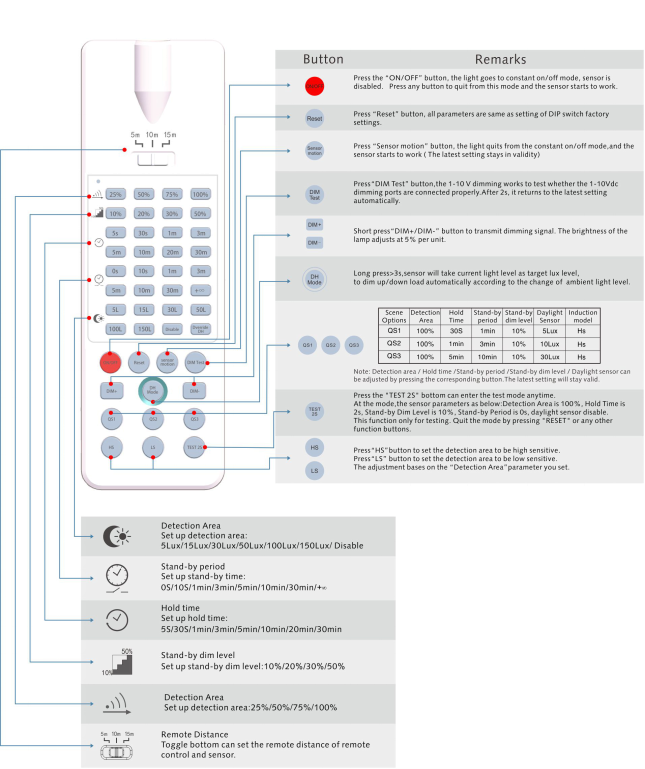

Remote Control

High Bay Microwave Light Sensor Detachable Remote Control For Warehouse

Applications:

warehouse, etc
